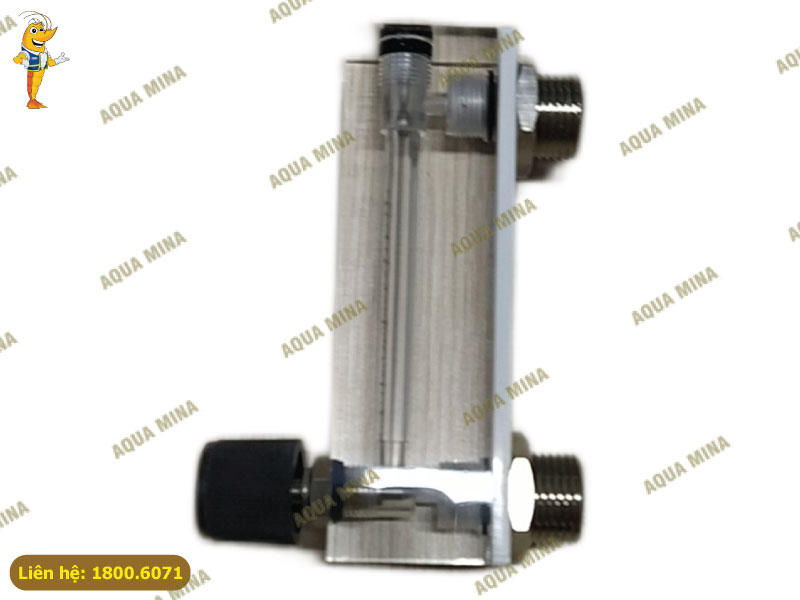

1. Technical specifications of the flow rate valve at Aqua Mina:
- Rectangular shape mounted on the control panel
- Brand: SHLLJ
- Flow range: 2 - 10 L/min
- Operating temperature: 0-60°C
- Accuracy: ±5%
- Pressure: 0-6 bar
- Threaded connection: ¼” (13mm)
- Material: ABS plastic
2. Applications:
- It is a device used to measure the air flow rate and velocity of liquid in water treatment systems. When equipped with a flow control valve, the device can control the flow rate.

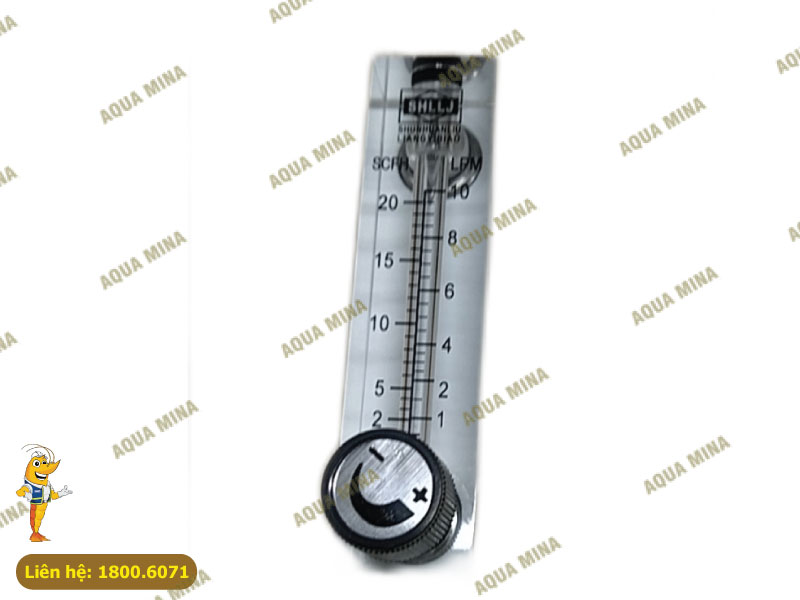

- A flow meter consists of three main parts: the measuring scale, float, and tube. Additionally, if flow control is required, a flow control valve must be installed.
- The air flow control valve is placed in the direction of liquid flow when in operation. The float of the flow meter is designed with a diameter nearly equal to the air intake pipe of the flow. The float is spherical in shape to fit inside the flow pipes and is raised from its initial position to pass through the gap between the float and the pipe wall as the liquid enters the pipe. The float will rise when the liquid flows through and will stop at a point where the flow is sufficient for the entire liquid volume to pass through.
- Measuring the flow rate of the liquid is affected by factors such as temperature and pressure of the liquid.
How to choose a quality and suitable air flow control valve:
Based on a thorough assessment of the nature of the liquid and the overall system setup to choose the flow meter. Therefore, when choosing need to pay attention to:
- The liquid to be measured, including its characteristics, properties, pressure, and viscosity.
- What are the minimum and maximum flow rates?
- The minimum and maximum pressure levels.
- The measurement speed required by the system.
- Temperature range.
- Chemical compatibility between the liquid to be measured and the components of the flow meter.
- Pipe diameter size.
